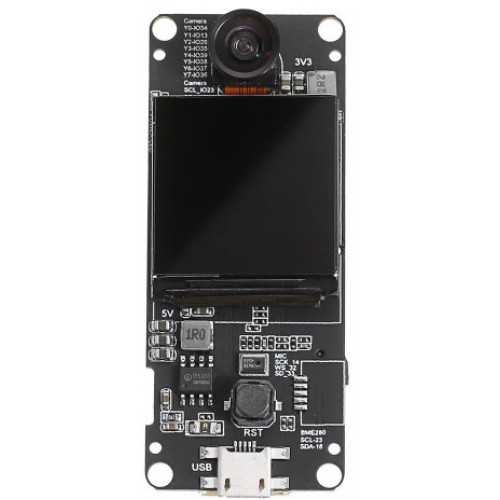

ESP32-Camera Board TTGO-Camera Plus
ESP32-Camera Board TTGO-Camera Plus
Camera Board voorzien van 1.3" IPS TFT Scherm en microfoon
Meer informatie: https://github.com/Xinyuan-LilyGo/esp32-camera-screen
| Hardware Specificaties: | |
| Chipset | ESPRESSIF-ESP32-DOWDQ6 240MHz Xtensa® dual-core 32-bit LX6 microprocessor |
| FLASH | QSPI 4M flash / 8M SRAM |
| SRAM | 520 kB SRAM + 8MBytes External SPRAM |
| KEY | Reset |
| Scherm | IPS Panel ST7789/1.3 Inch |
| Power indicator lamp | Rood |
| USB to TTL | CP2104 |
| Camera | OV2640 2Megapixel |
| On-board clock | 40MHz crystal oscillator |
| Working voltage | 2.3V-3.6V |
| Working current | about 160mA |
| Working temperature range | -40℃ to +85℃ |
| Size | 69.13*28.41*8.45mm |
| Microfoon | MSM261S4030H0 |
| SDCard | Geïntegreerd SD card slot |
| Power management chip | IP5306 |
| Power Supply | USB 5V/1A |
| Charging current | 1A |
| Battery | 3.7V lithium battery (niet ingegrepen) |
| WIFI | Description |
| Standard | FCC/CE/TELEC/KCC/SRRC/NCC |
| Protocol | 802.11 b/g/n/e/i (802.11n, speed up to150Mbps)A-MPDU and A-MSDU polymerization, support 0.4μS Protection interval |
| frequency range | 2.4GHz~2.5GHz(2400M~2483.5M) |
| Transmit Power | 22dBm |
| communication distance | 300m |
| bluetooth | Description |
| Protocol | Meet bluetooth v4.2BR/EDR and BLE standard |
| Radio frequency | With -98dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH |
| Audio frequency | CVSD&SBC audio frequency |
| Software specification | Description |
| Wifi Mode | Station/SoftAP/SoftAP+Station/P2P |
| Security mechanism | WPA/WPA2/WPA2-Enterprise/WPS |
| Encryption Type | AES/RSA/ECC/SHA |
| Firmware upgrade | UART download/OTA (Through network/host to download and write firmware) |
| Software Development | Support cloud server development /SDK for user firmware development |
| Networking protocol | IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT |
| User Configuration | AT + Instruction set, cloud server, android/iOSapp |
| OS | FreeRTOS |
